The greenhouse side window system is an important system for natural ventilation in greenhouses, often used in conjunction with wet curtain fans to reduce indoor temperature and facilitate ventilation. There are two forms of greenhouse side flip window transmission to choose from, one is straight rack transmission, and the other is curved rack transmission. What is the difference between the two types of transmission?

The greenhouse side flip window straight rack transmission system consists of an outward flipping window column, a reduction motor, a straight gear rack, a transmission shaft, a bearing seat, a rack seat, and matching side flip window aluminum alloy profiles.

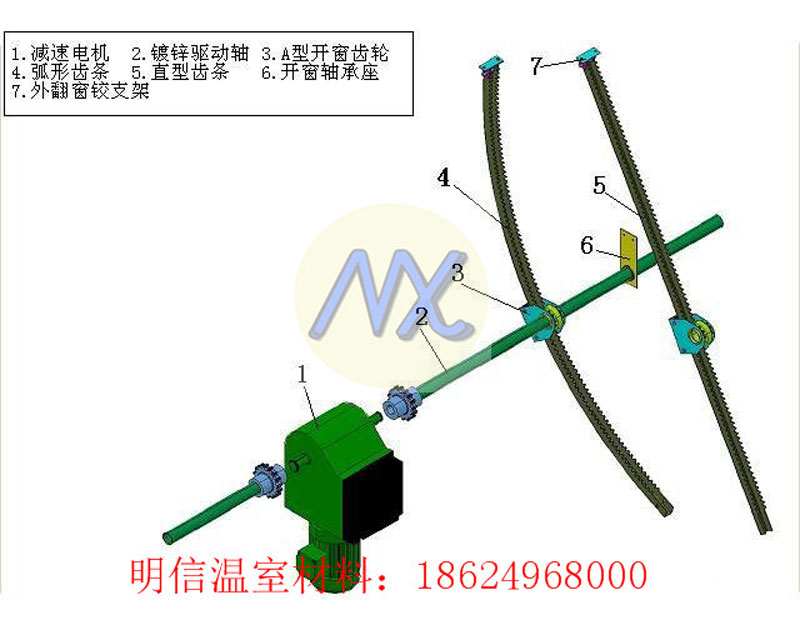

The greenhouse side flip window arc-shaped gear rack transmission system consists of a reduction motor, arc-shaped gear rack, transmission shaft, bearing seat, gear rack seat, and matching side flip window aluminum alloy profiles.

The difference between two types of side window transmission:

1. Column setting: The straight rack system side flip window column is set on the outside of the greenhouse, and the transmission system is also set on the outside of the greenhouse; The arc-shaped rack and pinion system does not require a window flipping column, it can be directly fixed to the column inside the greenhouse, and the transmission is set on the inside of the greenhouse.

2. Impact on the wet curtain: The arc-shaped rack system is installed on the inside of the greenhouse and needs to be perforated on the wet curtain. If the water circulation of the wet curtain is turned on, it will accelerate the rusting of the arc-shaped rack; The straight rack is installed on the outside of the greenhouse and will not affect the wet curtain. Therefore, if the greenhouse is equipped with a wet curtain, it is recommended to use a straight rack transmission system.

3. Impact on greenhouse usage area: The straight rack and pinion transmission is installed on the outside of the greenhouse and has no effect on the indoor usage area; The arc-shaped rack and pinion transmission is set on the inside of the greenhouse. It is recommended to open the side window on the second floor of the greenhouse side beam, and set the height of the side flip window higher, which will not have a significant impact on the internal use area of the greenhouse. It is not recommended to set it on the bottom floor.

Mingxin Greenhouse Aluminum Factory specializes in producing a complete set of aluminum materials for solar panels/glass greenhouses, as well as transmission system accessories for sunshades, top windows, and side windows inside and outside the greenhouse. If you need them, please feel free to consult: +8618624968000.
